EAP723

https://otwtech.com.au/web/image/product.template/4633/image_1920?unique=38a3eac

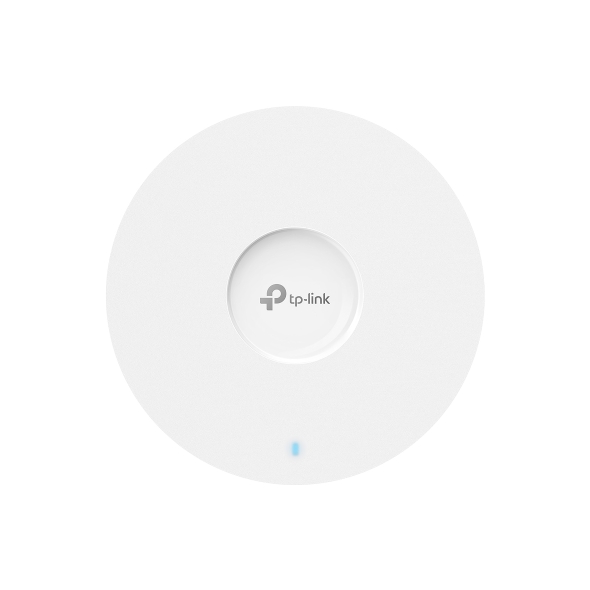

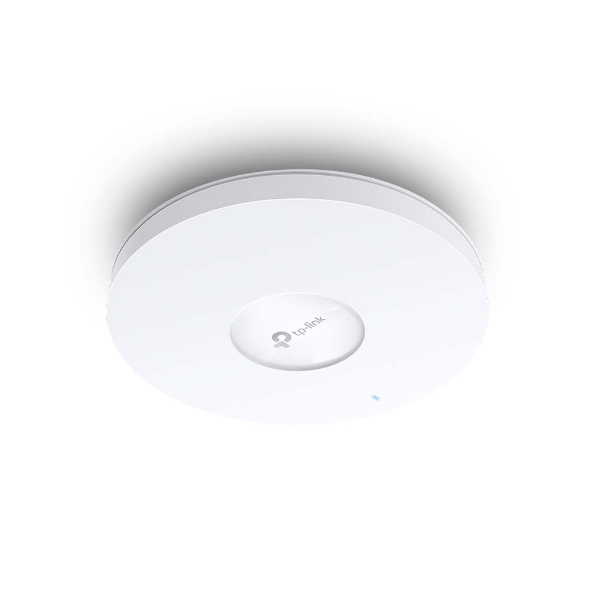

TPLINK BE3600 Ceiling Mount Wi-Fi 7 Access Point

You need to pass information authentication before you can see the product details.
TPLINK

TP-Link is a global provider of reliable networking devices and smart home products, consistently ranked as the world’s top provider of Wi-Fi devices. The company is committed to delivering innovative products that enhance people’s lives through faster, more reliable connectivity.

Wi-Fi Products

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

HARDWARE FEATURES
Interface1× 2.5G Ethernet Port
ButtonReset
Power Supply802.3at PoE or 12V/1.5A DC (Power Adapter Is Not Included)
Max. Power Consumption• 18.6 W (For PoE);
• 16.0 W (For DC)
Dimensions ( W x D x H )6.3 × 6.3 × 1.4 in (160 × 160 × 36.7 mm)
Antenna• 2.4 GHz: 2× 4.0 dBi
• 5 GHz: 2× 5.0 dBi

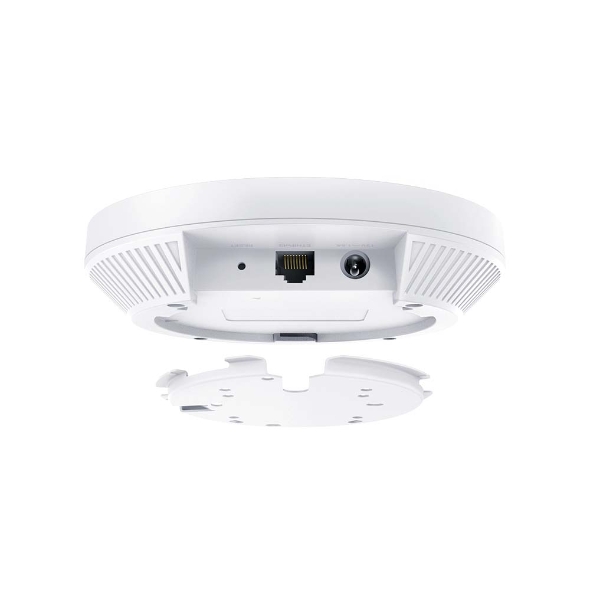

MountingCeiling / Wall Mounting (Kits Included)
WIRELESS FEATURES
Coverage140㎡(1500 ft²)***
Concurrent Clients250+**
Wireless StandardsIEEE 802.11 a/b/g/n/ac/ax/be
Frequency2.4 GHz and 5 GHz
Signal Rate688 Mbps (2.4 GHz) + 2882 Mbps (5 GHz)
Wireless Functions• 4K-QAM‡
• Seamless Roaming
• MU-MIMO‡
• EHT160‡
• Mesh△
• OFDMA‡
• Load Balance
• Band Steering
• Beamforming
• Airtime Fairness
• Multiple SSIDS:16(8 on each band)
• Wireless Schedule
• Reboot Schedule
• QoS(WMM)
• Rate Limit
• Static IP/Dynamic IP
• RADIUS Accounting
• MAC Authentication
Wireless Security• Captive Portal Authentication△
• Access Control
• Maximum number of MAC Filter: 4,000
• Wireless Isolation Between Clients
• VLAN
• Rogue AP Detection
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power< 20 dBm (2.4 GHz, EIRP)
< 23 dBm (5 GHz, band 1&band 2, EIRP)
< 28 dBm (5 GHz, band 3, EIRP)

Management Features
Omada AppYes
Centralized Management• Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
Cloud AccessYes. Require the use of an OC300, OC200, Omada Software Controller, or an Omada Cloud-Based Controller.
Email AlertsYes
LED ON/OFF ControlYes
Management MAC Access ControlYes
SNMPv1, v2c, v3
System Logging Local/Remote SyslogYes
Web-based ManagementYes
OTHERS
CertificationCE, FCC, RoHS, IC
Package Content• EAP723
• Installation Guide
• Ceiling/Wall Mounting Kit
Environment• Operating Temperature: 0 °C–40 °C (32 °F–104 °F);
• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);
• Operating Humidity: 10%–90% non-condensing;
• Storage Humidity: 5%–90% non-condensing;



Specifications

Brand TPLINK
